Add your IP address as an NSG rule in Azure using Powershell

Posted 16 Mar. 2021 | 3 min read.

One of the (very minor) downsides of working from home, is that I often need to add my IP address to many network security groups (NSG) in Azure.

At the office, this isn't an issue because they have the benefit of a static IP address. At home however, my public IP can change on a regular basis.

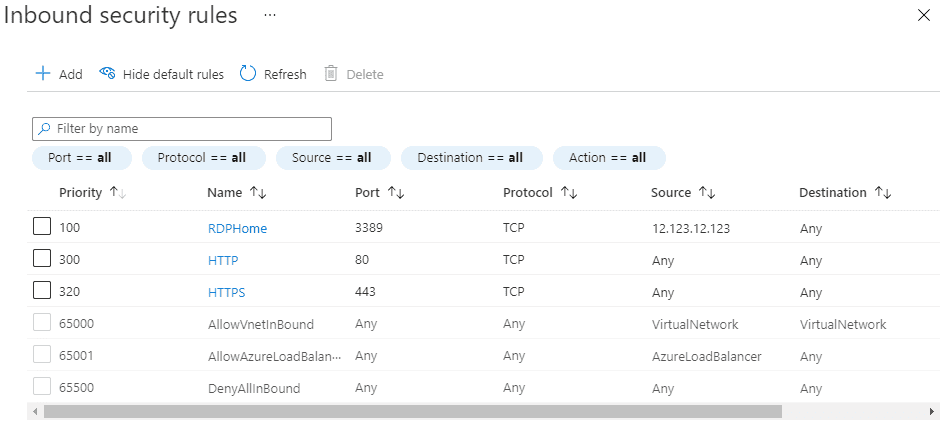

I need to add my IP to the list of Inbound security rules, for port 3389 (RDP, so that I can use remote connection to access the machine):

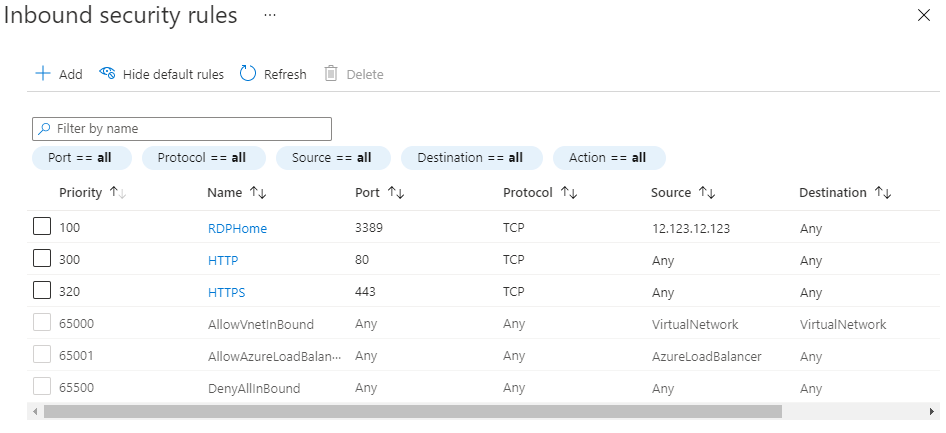

Inbound security rules

If this is a simple task, that I need to do every day, then why not automate it?

Setting things up

First thing we need to do is establish which NSG's we want to apply this to:

$nsgNames = @('My-nsg', 'Another-nsg')
$ruleName = "RDPHome"
$ruleDesc = "Allow RDP from my Home PC"
$rulePort = 3389

We should be able to select the NSG by name, and then add the rule with the subsequent fields for each one.

We also need our public IP address. I wrote an article on how we can get that in powershell here: Getting your public IP address using Powershell. Short version, we can get it by calling this:

$myIP = (Invoke-WebRequest -uri "https://api.ipify.org/").Content

Connecting to Azure

Next, we need to connect to the Azure account:

Connect-AzAccount

This will bring up a separate window to log in, and then use those credentials for the rest of the script.

Creating/updating the rule

Let's now look at the method that will create/update the rule:

function AddOrUpdateRDPRecord {
    Process {
        $nsg = Get-AzNetworkSecurityGroup -Name $_
        $ruleExists = (Get-AzNetworkSecurityRuleConfig -NetworkSecurityGroup $nsg).Name.Contains($ruleName);

        if($ruleExists)
        {
            # Update the existing rule with the new IP address
            Set-AzNetworkSecurityRuleConfig `
                -Name $ruleName `
                -Description $ruleDesc `
                -Access Allow `
                -Protocol TCP `
                -Direction Inbound `
                -Priority 100 `
                -SourceAddressPrefix $myIp `
                -SourcePortRange * `
                -DestinationAddressPrefix * `
                -DestinationPortRange $rulePort `
                -NetworkSecurityGroup $nsg
        }
        else
        {
            # Create a new rule
            $nsg | Add-AzNetworkSecurityRuleConfig `
                -Name $ruleName `
                -Description $ruleDesc `
                -Access Allow `
                -Protocol TCP `
                -Direction Inbound `
                -Priority 100 `
                -SourceAddressPrefix $myIp `
                -SourcePortRange * `
                -DestinationAddressPrefix * `
                -DestinationPortRange $rulePort
        }

        # Save changes to the NSG
        $nsg | Set-AzNetworkSecurityGroup
    }
}

First, we check if a rule already exists with that name. If it does, we update it, otherwise we create a new rule.

Finally, we save changes to the NSG.

Now we just need to iterate over each NSG and apply the rule. Fortunately, we can do this with a single line:

$nsgNames | AddOrUpdateRDPRecord

Putting it all together

Here is the full script, in order:

$nsgNames = @('My-nsg', 'Another-nsg')
$ruleName = "RDPHome"
$ruleDesc = "Allow RDP from my Home PC"
$rulePort = 3389

$myIp = (Invoke-WebRequest -uri "http://ifconfig.me/ip").Content

function AddOrUpdateRDPRecord {
    Process {
        $nsg = Get-AzNetworkSecurityGroup -Name $_
        $ruleExists = (Get-AzNetworkSecurityRuleConfig -NetworkSecurityGroup $nsg).Name.Contains($ruleName);

        if($ruleExists)
        {
            # Update the existing rule with the new IP address
            Set-AzNetworkSecurityRuleConfig `
                -Name $ruleName `
                -Description $ruleDesc `
                -Access Allow `
                -Protocol TCP `
                -Direction Inbound `
                -Priority 100 `
                -SourceAddressPrefix $myIp `
                -SourcePortRange * `
                -DestinationAddressPrefix * `
                -DestinationPortRange $rulePort `
                -NetworkSecurityGroup $nsg
        }
        else
        {
            # Create a new rule
            $nsg | Add-AzNetworkSecurityRuleConfig `
                -Name $ruleName `
                -Description $ruleDesc `
                -Access Allow `
                -Protocol TCP `
                -Direction Inbound `
                -Priority 100 `
                -SourceAddressPrefix $myIp `
                -SourcePortRange * `
                -DestinationAddressPrefix * `
                -DestinationPortRange $rulePort
        }

        # Save changes to the NSG
        $nsg | Set-AzNetworkSecurityGroup
    }
}

Connect-AzAccount

$nsgNames | AddOrUpdateRDPRecord
